Graco products include premium equipment to move, measure, control, dispense, and spray a wide variety of fluid and powder materials. Graco equipment is made entirely in the U.S.A with world-class manufacturing skills and a world-class staff of technicians. They work closely with specialized distributors like Cullum & Brown to offer products that set the standard for a wide variety of fluid handling applications. Graco invests in fluid management and controls to provide innovative solutions to our customers. With 90 years in the making, they are a brand to trust. Find what you need in our Husky, ChemSafe, and SoloTech solutions here:

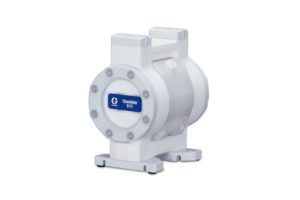

Our ChemSafe pumps are available with 100% PTFE or UHMWPE corrosion and abrasion-resistant fluid paths, making them ideal for even the most challenging of fluids. With a leak-free design and corrosion-resistant parts, these products meet the most temperature and chemical compatibility requirements.
With only the hose in contact with the fluid pump and no check valves in line, Graco’s SoloTech peristaltic pumps are ideal for materials that other pumps cannot handle. With only one hose compression per revolution, SoloTech pumps have extended hose life and low maintenance.
Husky air-operated double diaphragm pumps are loaded with features to help you get the job done right, every time, and are built to save you money. Rugged construction allows for reliable performance and long life, while the lubrication-free process allows for a cleaner operation. Discover the Husky advantage.
• 3/8 in (9.4 mm) connection
• Max flow: 7 gpm (26 lpm)
• Polypropylene, acetal
• 1/2 in (12.7 mm) connection
• Max flow: 15 gpm (57 lpm)
• Polypropylene, acetal, PVDF
• 3/4 in (19.1 mm) connection
• Max flow: 16 gpm (61 lpm)
• Aluminum, SST
• 1 in (25.4 mm) connection
• Max flow: 50 gpm (189 lpm)
• Aluminum and SST
The new SaniForce lines saves you time and money by pumping the most difficult materials — quickly and safely! Transfer options available for low to high viscosity materials from food.
Easy to clean and sanitize pump for food and beverage applications.
| 515 | 1040 | 1040e | 1590 | 2150 | |
| Max Fluid Rate | Up to 15 gpm (57 lpm) | Up to 40 gpm (151 lpm) | Up to 35 gpm (132 lpm) | Up to 100 gpm (379 lpm) | Up to 150 gpm (568 lpm) |
| Max Fluid Pressure | 100 psi (7 bar, 0.7 Mpa) | 120 psi (8 bar, 0.8 Mpa) | 70 psi (4.8 bar, 0.48 Mpa) | 120 psi (8 bar, 0.8 Mpa) | 120 psi (8 bar, 0.8 Mpa) |
| Max Pumpable Solids | 3/32 in (2.38 mm) | 1/8 in (3.2 mm) | 1/8 in (3.2 mm) | Ball – 3/16 in (4.8 mm)
Flapper – 1/4 in (31.9 mm) |
1/4 in (6.4 mm) |
| Viscosity Range | Up to 5,000 cps | Up to 10,000 cps | Up to 10,000 cps | Up to 15,000 cps | Up to 25,000 cps |
| Wetted Section Options | FG | FG, HS, PH | FG, HS, PH | FG, HS, PH, 3A | FG, HS, PH, 3A |
Graco’s SaniForce e-Series pump will help you achieve all of these objectives!
| 2150e | 3000e | 4000e | 3150 | 4150 | |
| Max Flow Rate | Up to 140 gpm (530 lpm) | Up to 140 gpm (530 lpm) | Up to 140 gpm (530 lpm) | Up to 130 gpm (492 lpm) | Up to 90 gpm (341 lpm) |
| Max Fluid Pressure | 100 psi (7 bar, 0.7 Mpa) | 100 psi (7 bar, 0.7 Mpa) | 100 psi (7 bar, 0.7 Mpa) | 120 psi (8 bar, 0.8 Mpa) | 120 psi (8 bar, 0.8 Mpa) |
| Max Pumpable Solids | 1/4 in
(6.4 mm) |
2.6 in
(66 mm) |
3.8 in
(96.5 mm) |
2.6 in
(66 mm) |
3.8 in
(96.5 mm) |
| Viscosity Range | Up to 25,000 cps | Up to 15,000 cps | Up to 15,000 cps | Up to 15,000 cps | Up to 15,000 cps |
| Wetted Section Options | FG, HS, PH, 3A | LP | LP | LP | LP |
The cleanest way to unload materials without introducing airborne bacteria!
| Max Flow Rate | Up to 14 gpm (53 lpm) | Up to 150 gpm (568 lpm) | Up to 14 gpm (53 lpm) | Up to 300 gpm (1135 lpm) | Up to 56 gpm (212 lpm) |
| Max Fluid Pressure | 400 psi (28 bar, 2.8 Mpa) | 120 psi (8 bar, 0.8 Mpa) | 1200 psi (83 bar, 8.3 Mpa) | 120 psi (8 bar, 0.8 Mpa) | 1200 psi (83 bar, 8.3 Mpa) |
| Max Pumpable Solids | 1/4 in (6.4 mm) | Ball = 1 in (25.4 mm)
Flapper = 2.5 in (63.5 mm) |
1/8 to 1/4 in
(3.2 to 6.4 mm) |
Ball = 1 in (25.4 mm)
Flapper = 2.5 in (63.5 mm) |
1/4 in (6.4 mm) |
| Viscosity Range | Up to 50,000 cps | Up to 100,000 cps | Up to 2,000,000 cps with priming piston | Up to 100,000 cps | Up to 2,000,000 cps with priming piston |
From turnkey equipment and system installs to 24/7 emergency service, we can help.
